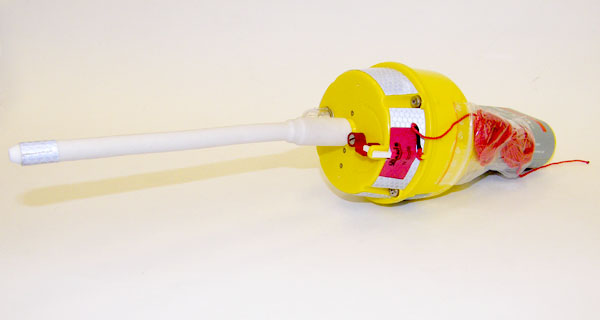

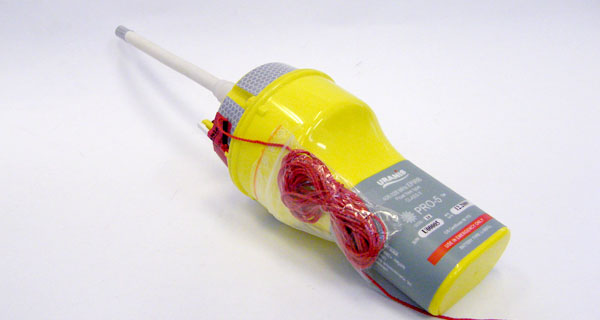

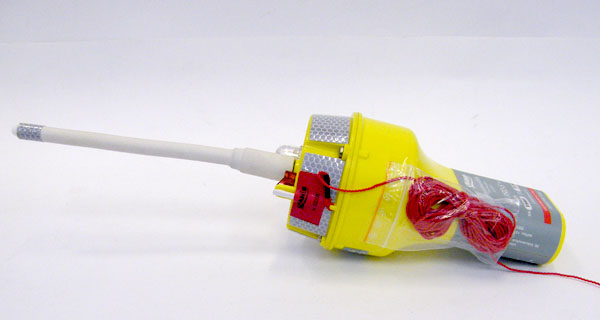

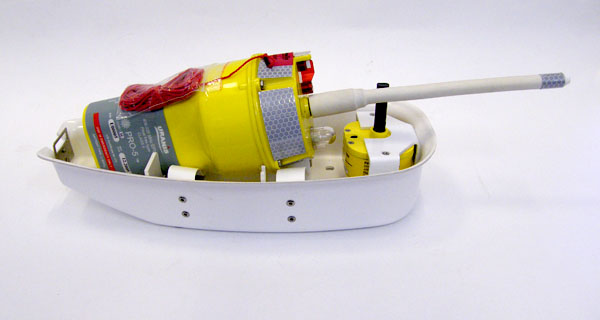

EPIRB PRO-5 Float Free

Pro-5 Float Free Satellite Emergency Position Indicating Radio Beacon (EPIRB) measures up with the IMO requirements for COSPAS-SARSAT system and is a mandatory item in the GMDSS (Global Maritime Distress Safety System). When a distress beacon is activated, it transmits a distress radio signal that is detectable by satellites. The beacon is brought into action automatically at depth of 4 meters or more and transmits distress signal (position and identity). This equipment guarantees high-speed identification by means of the unique code of each beacon, positioning to within one nautical mile with short response time.



General Specification:

Message format: MMSI, Serialised, Call Sign
Programming: Easy remote programming
Temperature: Opearting: -30°C to 55° Class 2
Storage: -50°C to +70°C
Battery: Lithium, to be replaced every five and a half years, 48 hours operation
Hydrostat: Hammar H20
Weight with bracket: 2.2kg (Including the weight of Hammar 20)
Weight with bracket: 2.0kg (EPIRB weight - 1kg, Bracket weight - 1kg)
Warranty period: 5 years

Technical Specification:

406MHz Transmitter
Frequency 406.028MHz+/-1kHz
Output Power 5 Watts +/-2dB
Modulation Biphase 1.1 +/-0.1 radians
Data Encoding Bi phase L
Antenna External vetical whip
121.5MHz Transmitter
Frequency 121.5MHz+/-3KHz
Output Power 50mW
Modulation AM, or sweep tone
Strobelight
Effective intencity >1 candela
Flash Rate <23 flashes per minute

Approvals:

Complies with IMO resolutions A662(16), A694(17), A810 (19)
Complies to COSPAS-SARSAT C.S.T.001 and T.007
Wheel Mark Approval

No files avaliable for this product.
