Environmental Tests

Public Enterprise Testing Center ‘Omega’ is accredited to perform environmental tests in accordance with the following Standards:

- GOST 28***-89,
- КТ160-D;
- EUROCAE ED-62,
- EUROCAE ED-14 F
- MilitaryStandart-810D,
- MilitaryStandart-461F,
- IEC60068 Series etc.

We carry out various types of tests, including:

1. Environmental tests:
- COLD (up to -75 °С, net volume up to 8000 dm³, net volume dimensions up to 2200*2400*1750);
- DRY WARMTH ( up to +250 °С, net volume up to 8000 dm³, net volume dimensions up to 2200*2400*1750);
- TERMOSHOCK (net volume up to 8000 dm³, net volume dimensions up to 2200*2400*1750);
- ‘gradient’ temperature change (cold and heat);
- HUMIDITY (up to 100%, net volume up to 8000 dm³, net volume dimensions up to 2200*2400*1750);
- ‘GRADIENT’ HUMIDITY CHANGE;
- ICING-UP;
- IN DEWFALL CONDITIONS.

2. SALT FOG (net volume 900*600*500, max weight 35 kg).

3. SHOCK TESTS IN THREE PLANES (Sample weight up to 500 kg, acceleration up to 1000g, duration up to до 30 milliseconds).

4. VIBRATION (broad-band random vibration, sinusoidal vibration, mixed tests – sinus superposition at broad-band random vibration, sinusoidal fluctuations of the constant or sliding frequency while remaining constant the amplitude or acceleration up to 100 g, frequency up to 5000 Hz, sample weight up 500 kg)

5. SAND and DUST (Net volume 3,7 m³)

6. PRESSURE:
air hypertension (up to 784,5 kPa; sample dimensions up to 140х140х350 mm);
hydrostatic pressure (up to 40 atmospheres, sample dimensions up to 140х140х350 mm);
underpressure (up to 4 kPa; net volume up to 8000 dm³, net volume dimensions up to 2200*2400*1750);

7. SPLASH AND WATERPROOFNESS;

8. SEA WAVE WASH.

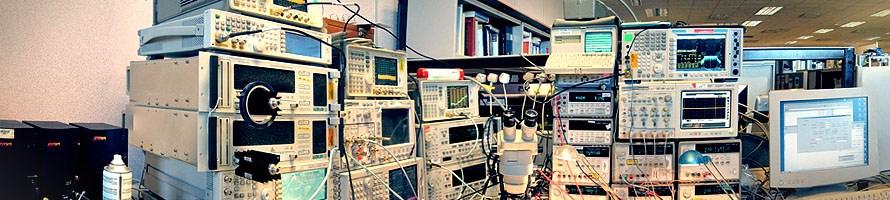

Testing Center Omega is equipped with up-to-date testing and measurement equipment of the leading world manufacturers. It permits to carry out tests of products in accordance with the wide scope of normative regulations. Due to the experience and high competence of our specialists we carry out complete tests of your products which permit you to place it on the various markets world-wide.

Other Services

EMC TESTS

EMC TESTS

We perform electromagnetic compatibility (EMC) testing according to EU and US normative document requirements. We have accreditation with ISO 17025. We provide tests on Electromagnetic Compatibility, principal EMC requirements, EMC testing for various markets, EMC testing for military equipment. We performs tests in accordance with the requirements of the modern international standards, such as EN, IEC, CISPR, ANSI, RTCM, ED, etc.
Radio and Telecommunication Equipment Testing

Radio and Telecommunication Equipment Testing

WE can carry out the product conformity assessment in accordance with the requirements of Technical Regulations including "Technical Regulation for Radio and Telecommunication Terminal Equipment". We have got all the facilities to perform tests for the radio and telecommunications equipment according to the requirements of the R&TTE harmonized standards for European market.
Automatic Identification System (AIS) Testing

Automatic Identification System (AIS) Testing

Our company can provide type testing on behalf of AIS equipment manufacturers worldwide to ensure that the products are able to communicate with any other AIS equipment in use and that the system integrates with marine products such as the communications and navigation systems. Required by IEC61993-2 (Class A), IEC62287-1 (Class B), IEC62320-2 (A to N) etc, which includes EMC, Environmental, Safety, RF and Protocol testing.
Cospas-Sarsat BEACONs testing

Cospas-Sarsat BEACONs testing

We offer to perform search and rescue beacon testing on behalf of Cospas-Sarsat in accordance with requirements of T.001 Specification for Cospas-Sarsat 406 MHz Distress Beacons, T.007 Cospas-Sarsat 406 MHz Distress Beacon Type Approval Standard, T.015 Cospas-Sarsat Specification and Type Approval Standard for 406 MHz Ship Security Alert (SSAS) Beacons.
GMDSS Testers All in One

RF DESIGN

RF Design & Technologies

Our company offers a wide range of electronic Design services in field of Radio frequency (RF) engineering in maritime and aviation areas.

Applying our experience to RF design and manufacturing, we offer PCB engineering and development services to companies within such various industries as telecom, commercial, industrial, aerospace and military.

Our engineering services includes design and manufacturing in range from product concept and PCB design to production, assembly, and testing.

OEM PRODUCTS

406MHz, 121.5MHz, AIS OEM Card

We offer some solutions ready to be integrated and sold under your trademark or brand. Our technologies can be incorporates into your new products.

We ready to design solution under you specification and custom orders to suit your needs.

We can work together for a delivery solution that best fits your inventory level and cash flow needs.

We have ready 3 channel small PCB - 406MHz, 121.5MHz and AIS that can be intergrated in any product.

SPECIAL EQUIPMENT

406MHz BEACON Monitor, GALILEO REFERENCE BEACON GENERATOR BG-105/102, AIS Tester Pro Lab

We offer special equipment that mainly used by laboratories or manufacturers for quality control in production.

High accuracy professional 406MHz BEACON Tester BT-611M indended to check beacon compliance with the requirements, specified in C/S doc. T.001, T.007. The tester can be succesfully used for Cospas-Sarsat type approval certification process.

AIS-SART Tester Pro Lab Tester is device used for verification of AIS and AIS-SART parameters in real time allowing to analyze main parameters fluctuation in time.

GALILEO REFERENCE BEACON GENERATOR BG-105/102 is high-precision simulator of Cospas-Sarsat emergency beacon messages. It allows to simulate up to five simultaneously operating beacons with messages overlay in time. It gives the capability to run tests on the Galileo and C/S system.
