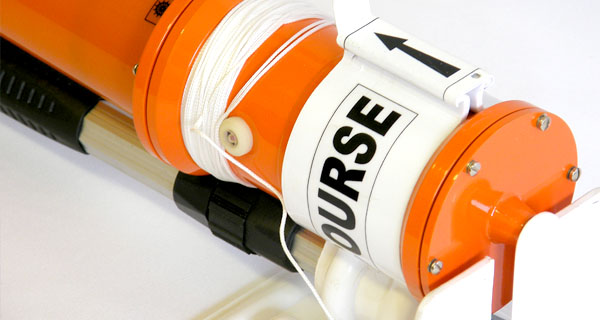

SART Course

SART Course (Radar-SART opposite to the new one AIS-SART ) is designed to be used in lifeboats and life rafts. Easy mounting on vessel bulkheads. SART (search and rescue radar transponder) is indented for use in search and rescue operations. SART Course gives the exact location of the distressed indicated on the radar X-band display of any nearby ship, SAR vessels and aircrafts. Complies with IMO/SOLAS/GMDSS regulations. MED approved. SART Course has wheel-mark, type approval of Russian and Ukrainian Register of Shipping.

SART is more cost effective version of the required SART ship equipment. There is also AIS SART – which operates on two frequencies for more precise distress point display by AIS equipment – both classes A and B).

The SART operates in the band of 9Ghz and begins to transmit emergency signal when interrogated by a 9GHz radar from an approaching vessel or aircraft.

The SART Course has a visual indication of the radar signals reception. It operates for a minimum period of 96 hours in the stand-by mode plus 8 hours of continuous operation when interrogated by a radar.

Using SART Course pay particular attention on its above sea level position and provide true-vertical mounting for the device. This provides more sufficient operation of the device: range of action increases to 30 miles for a plane and to 15-18 miles for vessels!

Many commercial ships are required by IMO regulations to carry at least 2 SARTs, which must be carried to the lifecrafts when ship abandoning. When any rescue vessel with a marine X-band radar (9.2 to 9.5GHz) comes within 7 miles of the lifecraft, the SART generates a line of 12 radial dots on its radar display, clearly indicating a distress situation and the position of the lifecraft.



General Specification

1

  Frequency range, GHz:

  9.2 ... 9.5

2

  Receiver sensitivity, dbm:

  -50

3

  Effective emission power, W:

  0.6 (by required of 0.4)

4

  Weight (Without container with elements of power supply ), kg

  1.1

5

  Power supply, V

  7

6

  Dimensions, mm
    - length
    - diameter


  34
  90

7

  Lifetime

  12 years

8

  Service life period of the batteries

   5 years

9

  Cylindrical bracket to elevate the device above the sea level

  1 meterr

10

  Floating lanyard length

  7 meters

11

  SART shell material

  ABS plastic and stainless steel

Operating temperature: from -20°C to +55°C t
Operating time for -20°C t : 96 hours in stand-by mode, 8 hours in response mode
Operating time for + 20°C t : about 200 hours

Impact tolerance: it is possible to drop in water from 20 meters height.
Warranty: 12 months

Delivery set:

SART with power supply unit - 1

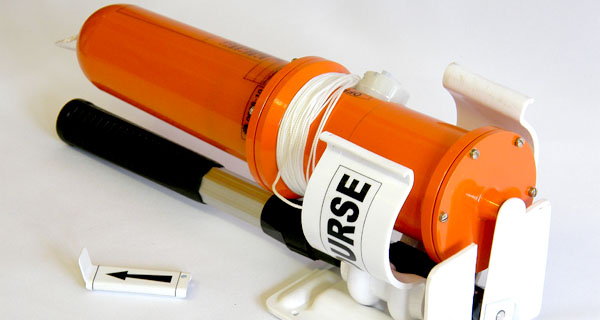

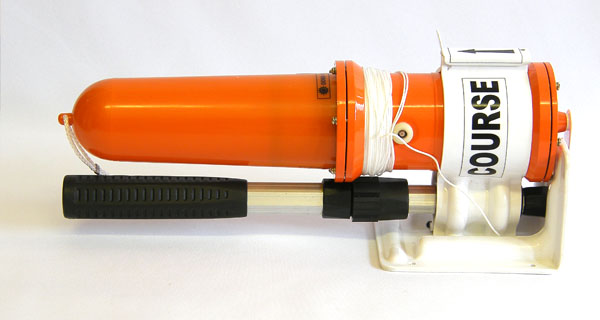

Vertical surface mount bracket - 1

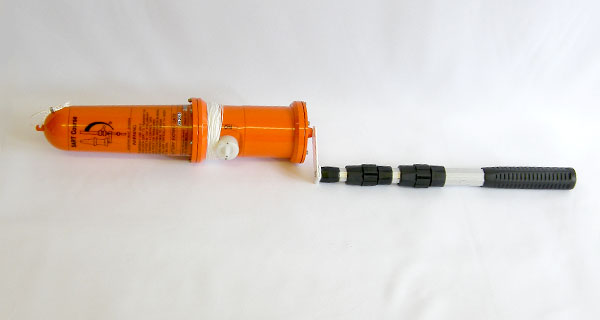

Cylindrical bracket to elevate the device above the sea level - 1
Users manual – 1

Conformance to standard:

SOLAS74, as amended, Regulations III/4, III/6.2.2, IV/7.1.3, IV14 abd X/3
IMO Resolutions MSC.97(73), 2000HSC Code, 8.2.1.2, 13.17.1, 14.7.1.3
IMO Resolutions A.530(13), A.694(17), A.802(19), A.813(19)
ITU-R M.628-3 (11/09)
EN 61097-1(1993, IEC 61097-1(1992), EN60945(2002), IEC 60945(2002)

Downloads are not currently avaliable
