AIS Tester Pro Lab

AIS (AIS-SART) Tester Pro Lab is designed for laboratories and manufactures of AIS and AIS-SARTs. The AIS Test Set is intended for verification AIS and AIS-SART parameters in real time with saving all received data.

AIS Tester Pro Lab is extended version of AIS Tester M1, has the same features but allows to perform deep analysis of AIS and AIS-SART functions in real time.

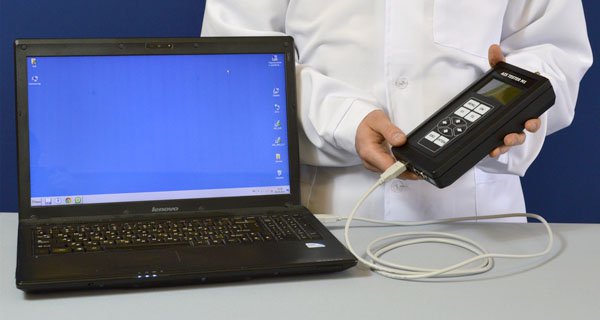

Tester receives all messages during set time and save the data to PC.

AIS (AIS-SART) Tester Pro Lab supports AIS channel 1, AIS channel 2 and DSC channel 70.

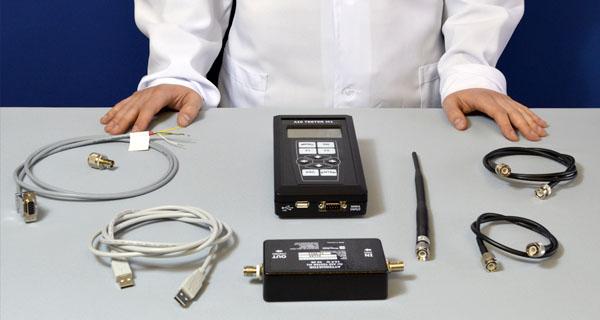

The tests can be carried out through attenuator or by means of antenna without direct connection to tested device.

Tester allows to test all type of AIS transponders of any manufacturer.

Designed in accordance with ITU-R M-1371-3, IEC 61993-2, IEC 61097-14.

Measure frequencies in:
- Channel AIS 1 (161.975 MHz)
- Channel AIS 2 (162.025 MHz)
- Channel DSC (156.525 MHz)

Measure power signal in:
- Channel AIS 1 (161.975 MHz)
- Channel AIS 2 (162.025 MHz)
- Channel DSC (156.525 MHz)

Technical Specification:

Signal Generator
Output Power 2mW (+1,–0.5 mW)
AIS frequency 161.975,162.025 MHz
AIS dual channel operation (AIS1&2)
AIS modulation FM-GMSK
AIS data rate 9600 bits/sec
DSC frequency 156.525 MHz
DSC modulation FSK (V23)
DSC data rate 1200 bits/sec
AIS & DSC channel spacing 25 kHz

Receivers (2 x AIS, 1 x DSC)
AIS frequency 161.975, 162.025 MHz
AIS dual channel operation (AIS1&2)
AIS data rate 9600 bits/sec
AIS sensitivity (ANT BNC) -47 dBm
DSC data rate 1200 bits/sec
DSC frequency 156.525 MHz
DSC sensitivity (ANT BNC) -37 dBm
AIS & DSC channel spacing 25 kHz

Messages:
AIS VDL messages:
Encode/decode: 1,2,3,4,5,9,11,18,19,21,24
Interrogation (encode): 3,4,5,9,11,18,19,21,24
DSC (encode/decode): Test signal 1 (IEC61933-2)
I/O Interface:
NMEA: Output: VDM & VDO
NMEA: Terminal Input (displays first 32 characters)

I/O Interface:
Presentation: RS232 - 38400 bits/sec
Pilot Port: RS422 -38400 bits/sec
NMEA terminal: RS422 - 4800-38400 bits/sec

Design reference standards:
ITU.R M.1371 IEC61993-2 IEC62287-1
IEC61162-1/2 EN50081-1 EN50082-1
EN55022 EN61000-4-2 EN61000-4-3
IEC62320-1 IEC62320-2 IMO SN/Circ.227
MSC.74(69), annex 3

No files avaliable for this product.
